REMOTE CONTROL CABLES (YPM)
Only the very best cable performs smoothly and reliably enough to be a match for the renowned quality of a Yamaha Remote Control.
PREMIUM POWERMATCHED CONTROL CABLE (YPM)

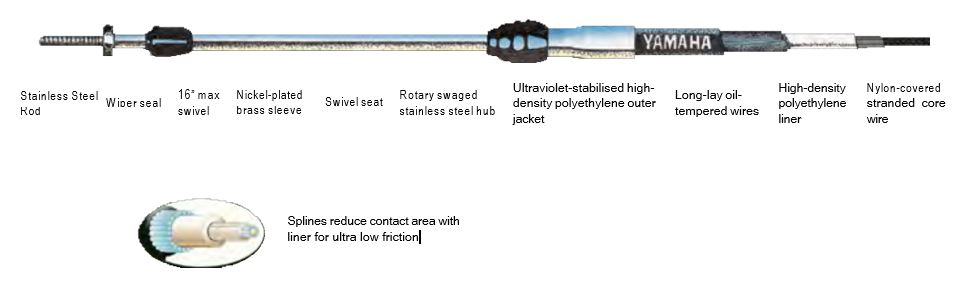

These are topoftheline cables, with features and performance that have made them the first choice of professional riggers. The ultralowfriction inner core wire has splines and a special cover to reduce contact with the liner, allowing rigging to even tighter tolerances; another benefit is reduced ‘play’ at the cable ends. We strongly recommend the use of Premium PowerMatched cables for boats with severe applications and long cable lengths, on twinengine installations and in fact, on any boat where unrivalled smoothness is is required. These cables are designed to run smoothly even if installation demands that curves or a radius be applied within the cable run.
Feet | CM | Part Number |
5' | 152 | YMM21005PM30' |
6' | 183 | YMM21006PM30' |
7' | 213 | YMM21007PM30' |
8' | 244 | YMM21008PM30' |
9' | 274 | YMM21009PM30' |
10' | 305 | YMM21010PM30' |
11' | 335 | YMM21011PM30' |
12' | 366 | YMM21012PM30' |
13' | 396 | YMM21013PM30' |
14' | 427 | YMM21014PM30' |
15' | 457 | YMM21015PM30' |
16' | 488 | YMM21016PM30' |
17' | 518 | YMM21017PM30' |
18' | 549 | YMM21018PM30' |
19' | 579 | YMM21019PM30' |
20' | 610 | YMM21020PM30' |
21' | 640 | YMM21021PM30' |
22' | 671 | YMM21022PM30' |
23' | 701 | YMM21023PM30' |
24' | 732 | YMM21024PM30' |
25' | 762 | YMM21025PM30' |
26' | 792 | YMM21026PM30' |
27' | 823 | YMM21027PM30' |
28' | 853 | YMM21028PM30' |
29' | 884 | YMM21029PM30' |
30' | 914 | YMM21030PM30' |

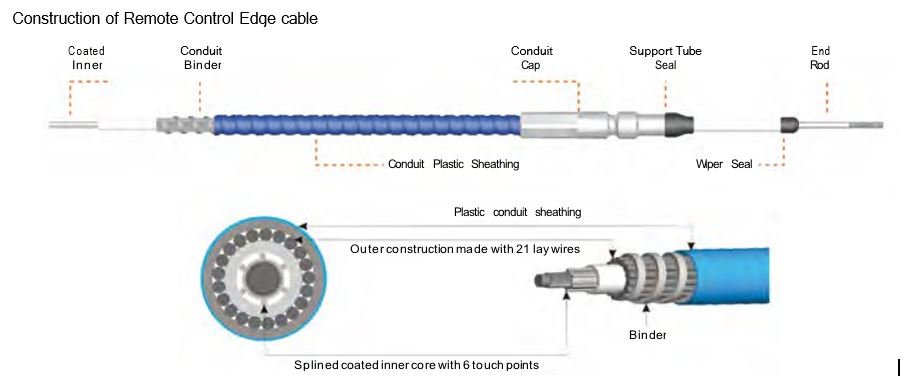

NEW HIGH PERFORMANCE EDGE CABLES
The below features translates into improved efficiency with reduced operator effort when EDGE cables are used:
•Special Edge Conduit: Unique design of Conduit provides structural integrity and a tighter minimum bend radius.
•Improved Efficiency: Edge cables provide significantly greater efficiency due to use of lowfriction materials and construction.
•Minimal Backlash: Edge cables are built allowing optimum gap between inner core and conduit, resulting in significantly minimal
backlash.
•Less Friction Wiper Seal: The wiper seals are made from a polyurethane impregnated with lifetime lubricant to minimize operating friction.
•Cable Bend Radius: Edge Cable can have a minimum bend radius of 10 centimeter, making it easy for difficult to reach spaces.
Feet | CM | Part Number |
5' | 152 | |
6' | 183 | YMEEC1330600' |
7' | 213 | YMEEC1330700' |
8' | 244 | YMEEC1330800' |
9' | 274 | YMEEC1330900' |
10' | 305 | YMEEC1331000' |
11' | 335 | YMEEC1331100' |
12' | 366 | YMEEC1331200' |
13' | 396 | YMEEC1331300' |
14' | 427 | YMEEC1331400' |
15' | 457 | YMEEC1331500' |
16' | 488 | YMEEC1331600' |
17' | 518 | YMEEC1331700' |
18' | 549 | YMEEC1331800' |
19' | 579 | YMEEC1331900' |
20' | 610 | YMEEC1332000' |
21' | 640 | YMEEC1332100' |
22' | 671 | YMEEC1332200' |
23' | 701 | YMEEC1332300' |
24' | 732 | YMEEC1332400' |
25' | 762 | YMEEC1332500' |
26' | 792 | YMEEC1332600' |
27' | 823 | YMEEC1332700' |
28' | 853 | YMEEC1332800' |
29' | 884 | YMEEC1332900' |
30' | 914 | YMEEC1333000' |
