Remote Control Boxes

Yamaha Remote Controls set the standard for operator comfort, convenience and flexibility. Their intuitive ergonomic designs allow for virtually effortless, one-hand control of throttle and shift functions, and allow for surprisingly easy command of horsepower and multiple engine installations.

Mechanical

Operated by mechanical cable to control throttle and shift mechanism.

703 Single Mount Control Box

Designed with broad compatibility in mind, this remote control can be fitted to almost every boat type and is compatible with almost every engine in the Yamaha Outboard range. The 703 delivers all of the basic control functions and open throttle can also be configured in either the push or pull direction. It can be used both at right side or left side configuration.

703 - For Electric Start Models	703-48207-24-00
703 - For Manual Start Pull Models (replacement of 701)	703-48206-20-00
703 - For Manual Start Push Models (replacement of 701)	703-48206-21-00

6X3 SINGLE ENGINE FLUSH MOUNT

A right-side flush mounted mechanical remote control with integrated lanyard switch. Push action to open throttle. Single key switch panel (without lanyard switch) and 10-pin wire harness supplied separately. It can be used both at right side or left side configuration.

Standard Mount	6X3-48206-10-00
Port Mount	6X3-48206-21-00

SINGLE 704 TOP MOUNT

The 704 Top Mount is designed for use with electric start models and ideally fitted to center console boats. Available in single and twin lever configurations for single and twin engine installations. A switch panel and extension wire harness are required to connect to the engine 10-pin harness.

Single Engine	704-48205-R0-00
Twin Engine	704-48207-R0-00

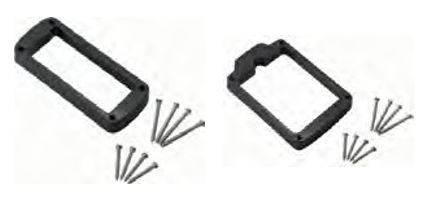

Spacer Kit - For 704 Single	704-48293-20-00
Spacer Kit - For 704 Premium Twin	704482933000

Drive by Wire

Drive by write installations are install specific, please use our rigging configurator to generate a list of part numbers required. We can assist you with this stage by contacting us via email.

Click here to begin
